HORIZONTAL TWIN AUGER FEED MIXER
SX40
İzelmak Horizontal Double Auger Feed Mixer SX40 is a compact solution for small and medium-sized farms, providing fast and homogeneous mixing. Its dual discharge system speeds up feed distribution, while its durable tractor-mounted design ensures practical operation.

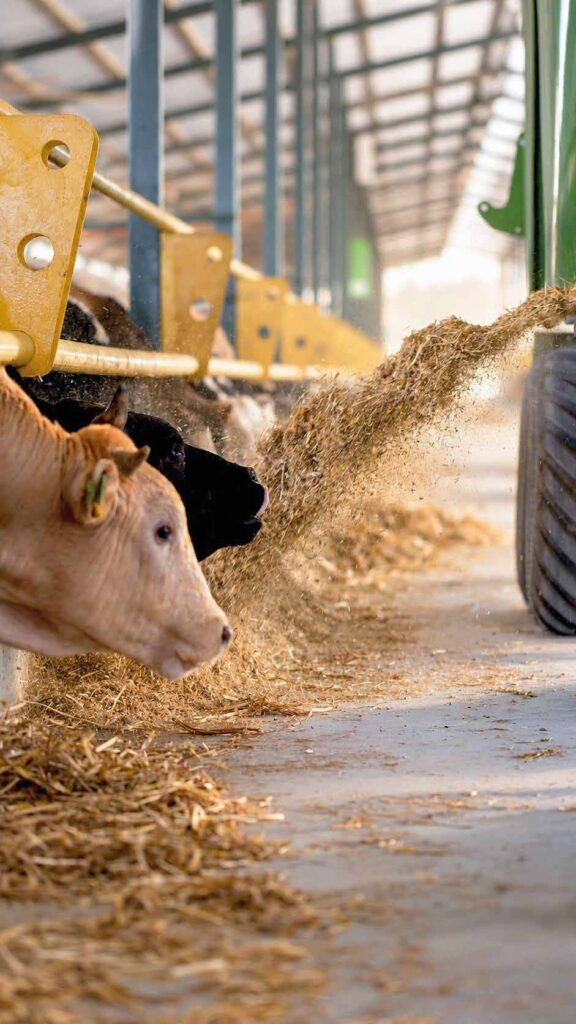

Where it fits
SX40 Horizontal Twin Auger
Developed for busy operations that need to prepare larger rations in less time.
Highlights
Series advantages.
İzelmak’s manufacturing experience meets practical details shaped by real field needs.
Two-way Circulation
Moves feed through the tub quickly and evenly.
High Work Capacity
Keeps up with intensive feeding schedules.
Strong Drivetrain
A robust transmission built for long service life.
Flexible Capacity
Model options to suit different herd sizes.
Technical specifications
SX40 technical data
Tractor power, field of application and daily workload should be considered together when choosing a machine.

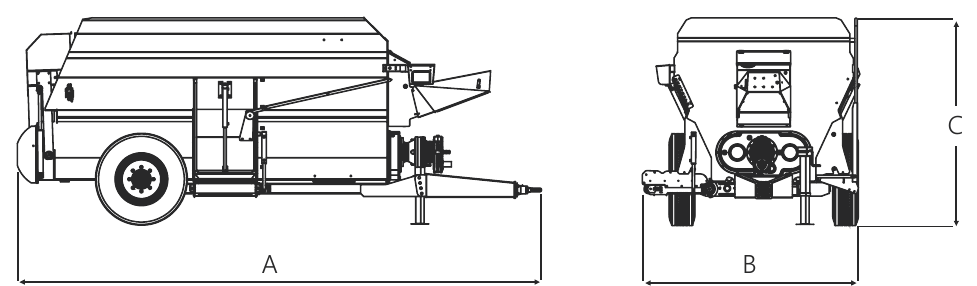

Download product brochure PDF · 896.8 KB · SX40- Length (A)
- 4220 mm
- Width (B)
- 2240 mm
- Height (C)
- 2005 mm
- Capacity
- 4 m³
- Body sheet
- 4 mm
- Floor sheet
- 8 mm
- Empty weight
- 2340 kg
- Loaded weight
- 3200 kg
- Tyre size
- 10x75x15.3
- Number of blades
- 80
- Auger speed
- 22.22 rpm
- Discharge direction
- Right
- Mixing system
- Double Auger

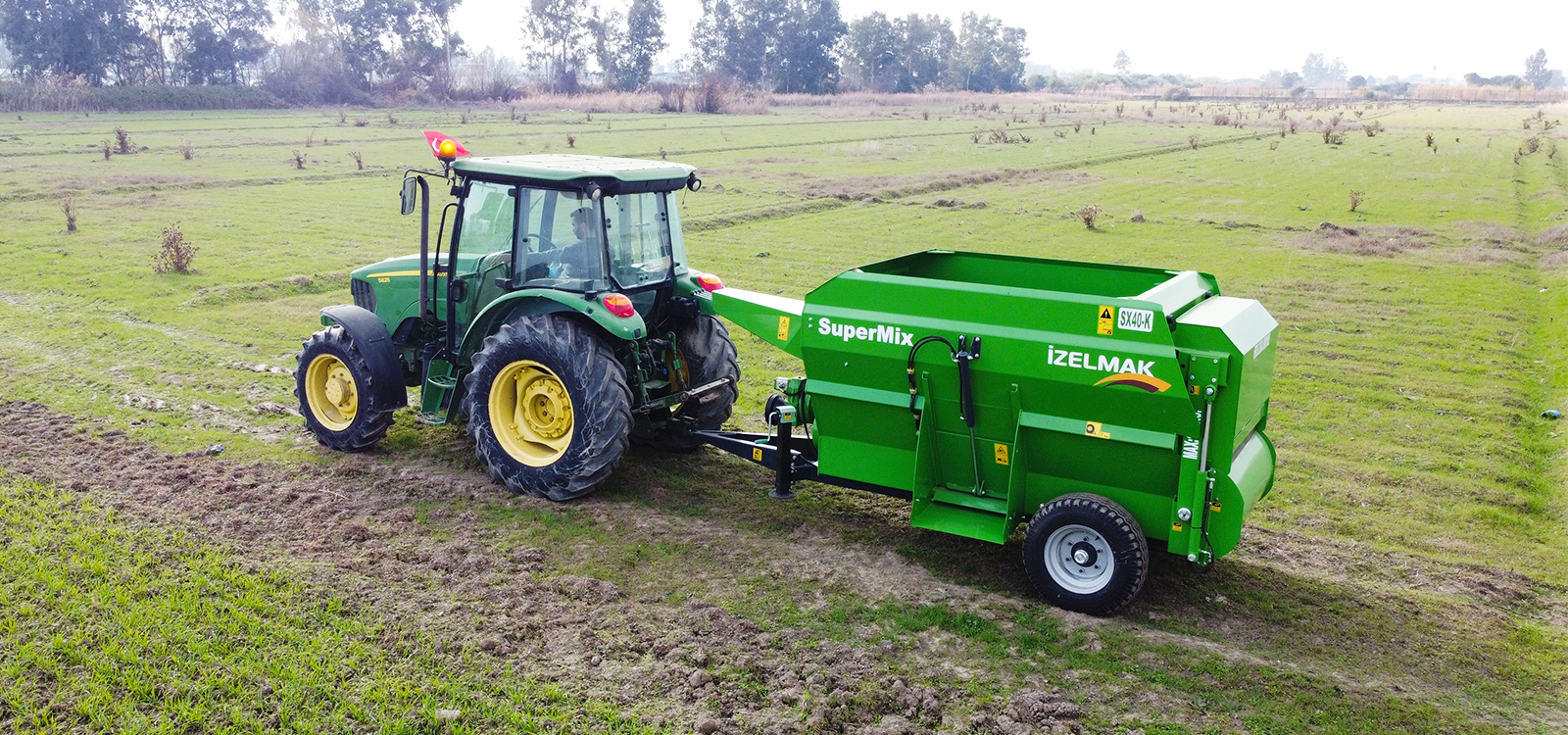

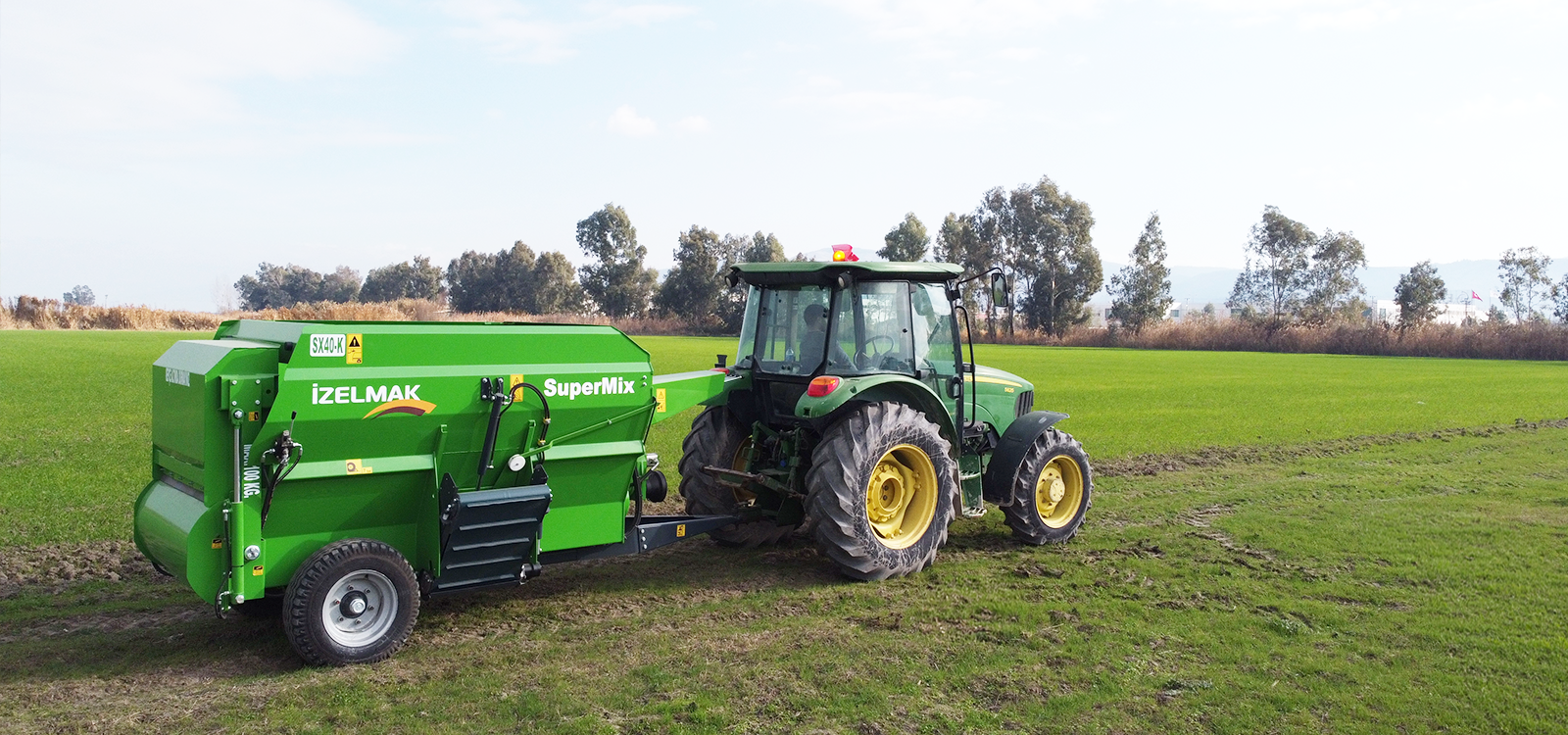

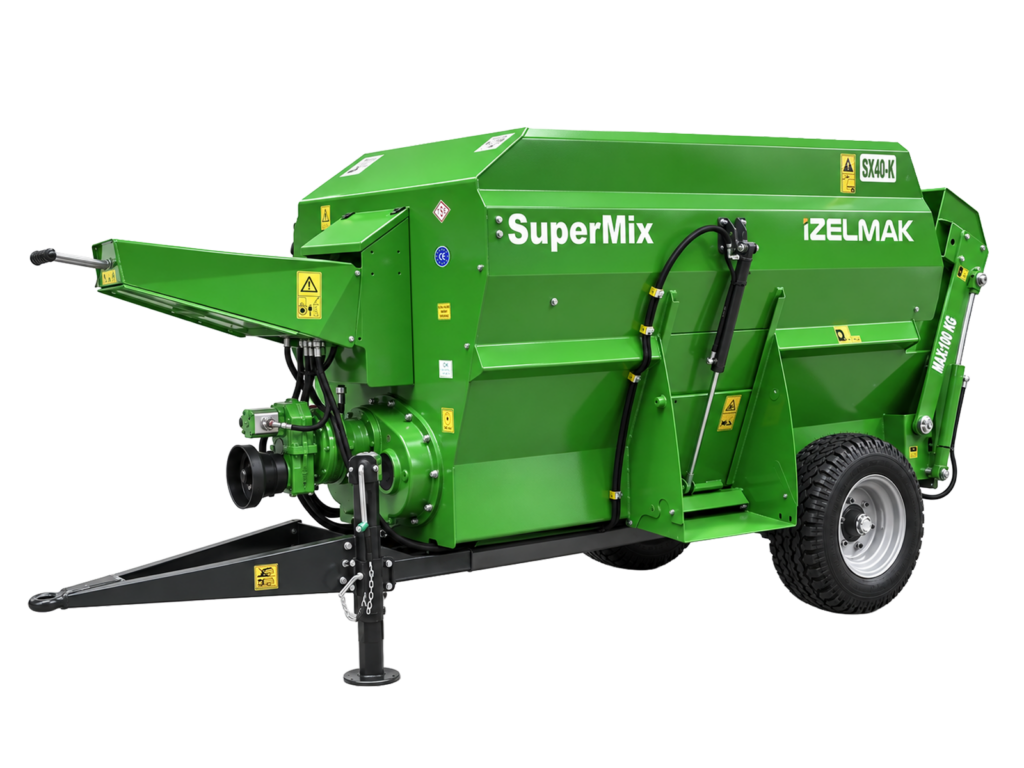

Product photos
Take a closer look at SX40.

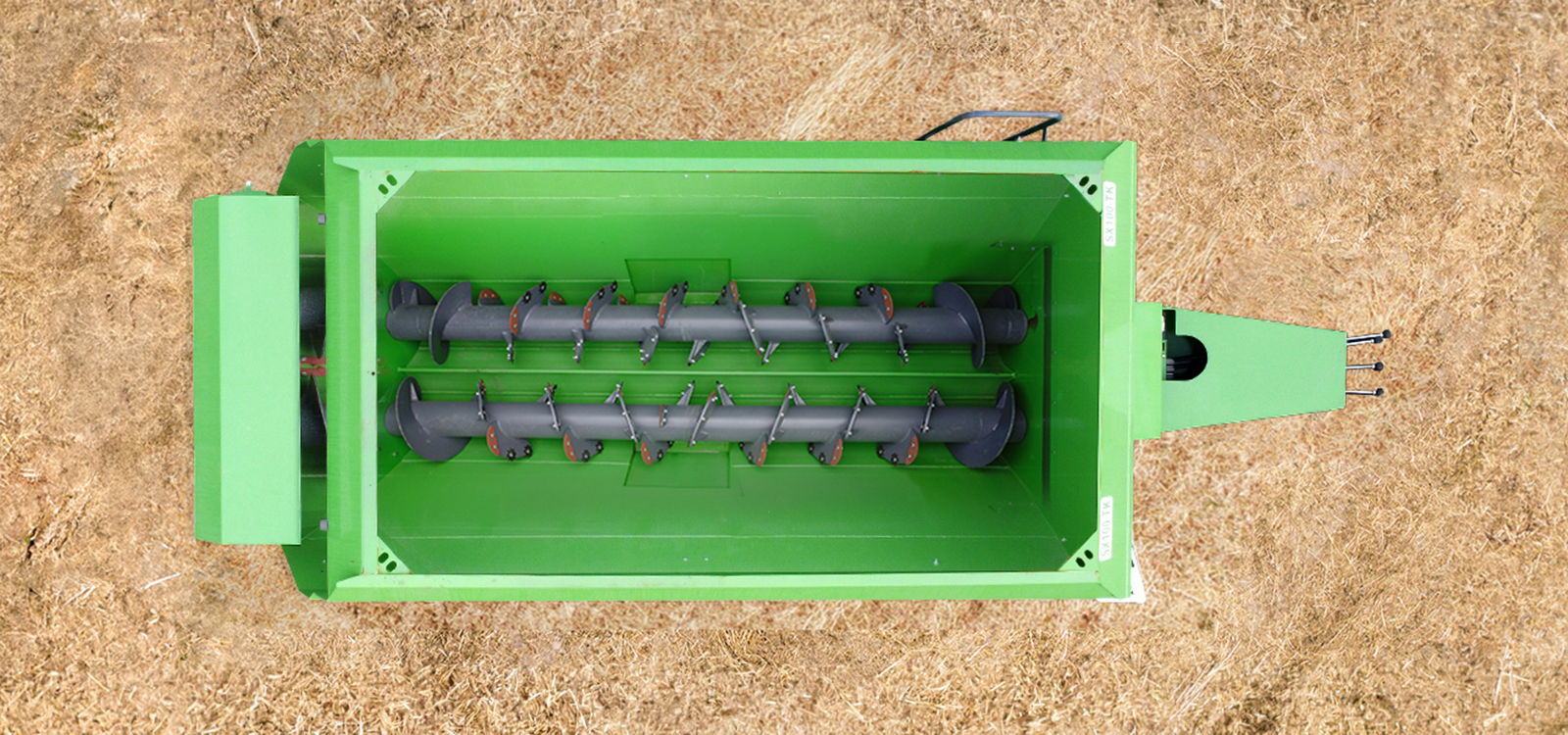

The body, inner volume and working system from different angles.
Ask about SX40
The right capacity, strong performance.
Our sales team will help you with capacity and tractor compatibility.
