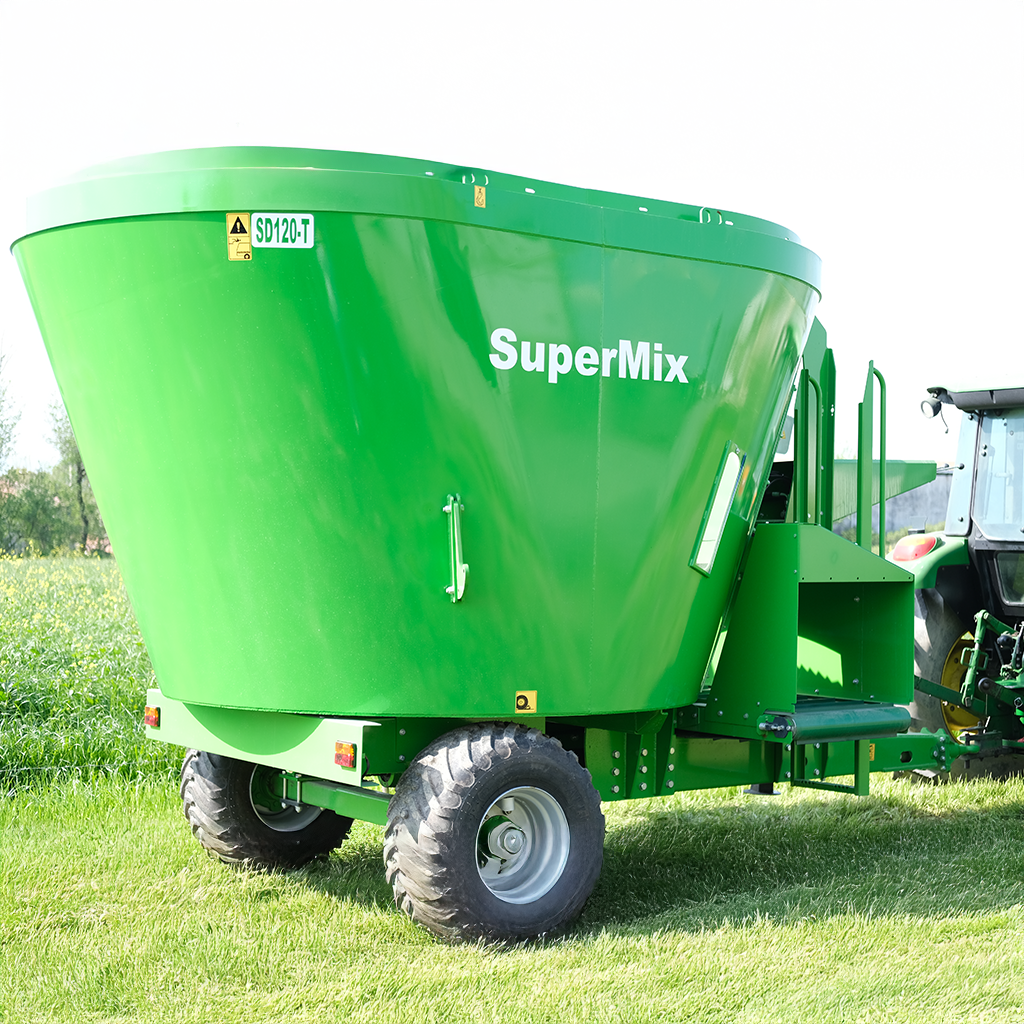

Vertical Feed Mixer SD120

İzelmak Vertical Single Auger Feed Mixer SD120 is the largest model in our vertical single auger range, designed for large-scale operations. Its wide hopper and large auger make it ideal for processing large bales. Equipped with our custom-designed gearbox, it delivers high efficiency with low power consumption. Its compact structure and chassis design allow for both stationary and tractor-mounted use. The electric-powered option offers fuel savings for an economical solution. The front conveyor belt enables easy feed discharge to both the left and right sides. With its durable construction and high performance, the SD120 provides efficient feed mixing for large enterprises.

Optional Features

Magnet
Electric Motor 55 Kw 1000 Rpm
Weighing System
Chip Weighing system
Hydraulic jack
Top Supplement
Hydraulically assisted compactor ax
Electric remote control

Information Material

Vertical Feed Mixer SD120

Standart Features

FeatureValue
CAPACITY 12 m³
MIXING SYSTEMSingle Auger
NUMBER OF BLADES13+2
MIN. POWER REQUIREMENT80 HP
PTO TRANSFER540 transfer/dk
GEARBOX TYPEPlanet
FeatureValue
AUGER SPEED32 Rpm
WHEEL SIZE400x60x15,5
FEED DISCHARGE DIRECTIONStandard (Front)
CONVEYOR BELTOptional
JACKMekanic
FeatureValue
LENGTH4920 mm
HEIGHT2670 mm
WIDTH2160 mm
BODY SHEET8 mm
BASE SHEET20 mm
EMPTY WEIGHT4850 kg
FULL WEIGHT8350 kg
